Contec membrane filters, many solutions for many applications

Membrane filter housings, membrane filter elements, prefilters for microfiltration and everything for prefiltration.

Membrane filters / Membrane filtration

Membrane filters / Membrane filtration

Contec elements for microfiltration / membrane filtration, water treatment, pharmaceutical products, vaccines etc. Membrane filter housings, membrane filter elements, pre-filters for microfiltration and everything for pre-filtration.

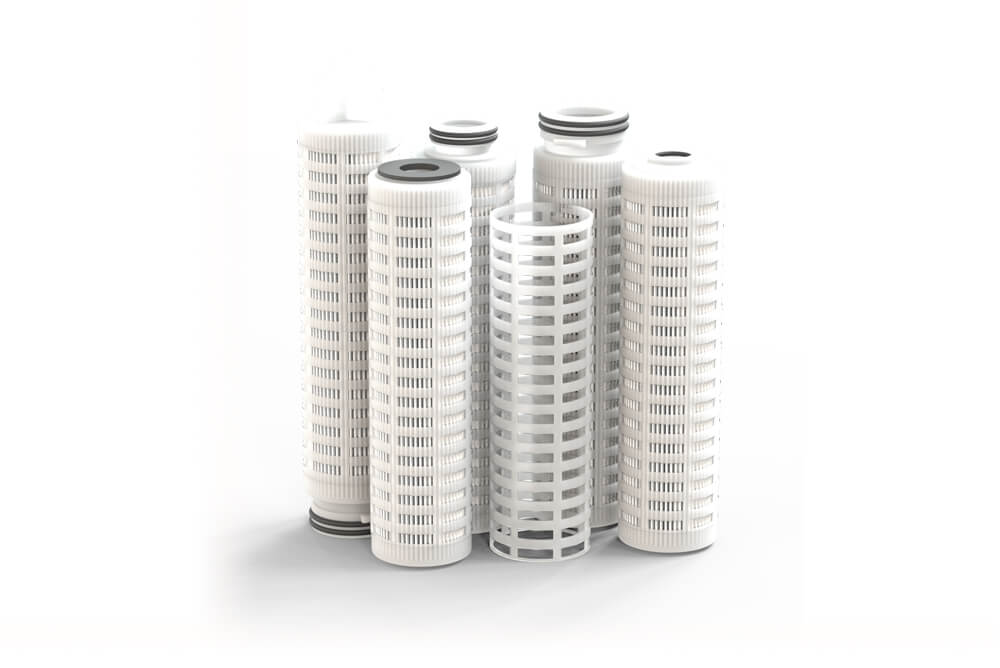

Contec membrane filter elements

To meet the highest purity requirements in the chemicals, pharmaceuticals and electronics industries, Contec makes quality standards the highest priority. The superiority of PTFE/FEP/PFA for especially critical process applications has been known for many years. PTFE features universal chemical resistance, high temperature resistance and no extractable constituents.

The COLF (Contec liquid filters) FF filter elements can be pre-flushed at 18 MΩ (optional).
Each filter element is manufactured in a cleanroom and its integrity checked before shipment.

Contec membrane filter housings

  • No fillers, coloring, or plasticisers
  • Good resistance to DI water and other inorganic solutions
  • Smooth surface prevents bacterial binding and growth

Filter elements of various lengths, degrees of fineness and material composition can be installed, for a broad range of applications.

Application

Contec Membrane filter elements for microfiltration, water reprocessing, pharmaceutical products, vaccines etc.

Characteristics

  • Largely produced in clean rooms
  • Contec Filter elements with PP membrane and membrane filter elements with epigastric polyether sulfone membrane

Advantages

  • Approved for contact with foodstuffs
  • Biological safety depending on type

Medium

  • Various fluids such as acids, alkaline solutions, oil, lacquer etc.

Options

  • Various adapters

Request

I agree that my data from the contact form will be collected to answer my question. The data will be deleted after your request has been processed.

Note: You can revoke your agreement at any time for the future by e-mail to info@contec-filtration.de. Detailed information on the handling of user data can be found in our data protection declaration.
CAPTCHA
Image CAPTCHA
Get new captcha!
Enter the characters shown in the image.
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.

Contact

Helmut Scherer
Product Manager
+49 (0)2224 9893-18
scherer[a]contec-filtration.de

FAQs

Membrane filters enable the very fine and precise removal of particles and microorganisms. Depending on the type of membrane, they can be used for microfiltration, ultrafiltration or sterile filtration.

In membrane filtration, a porous membrane performs the specified separation function.

A distinction is made between

  • Microfiltration (pore size approx. 0.1–10 µm) and
  • Ultrafiltration (pore sizes approx. 0.001 – 0.1 µm)

Most of the separation takes place on the membrane surface. The average membrane pore size essentially determines the separation effect.

Membrane filters are always used when a high degree of purity is required for the suspension to be filtered. Membrane filters are most cost-effective when the particle load in the suspension to be filtered is very low. Thus there should be pre-filtering to protect the high-quality membrane filter elements from clogging too quickly.

An integrity test checks whether the membrane and filter element are undamaged in accordance with specified criteria. Depending on the component and the application, tests such as bubble-point, diffusion or pressure-retention tests are used, for example. Test procedures and limit values must be specified by the component manufacturer and validated for the process.

Membrane filters have a wide range of applications.

They include the following:

  • water treatment (ultra-pure water, demineralized water
  • pharmaceutical products
  • food
  • beverages (wine, beer, spirits, sparkling wine, mineral water, etc.)
  • cosmetics
  • high-purity chemicals
  • photoresist
  • ink
  • as a terminal filter
