Contec Cardrige filter housings made of stainless for precision separation of solid matter from liquids
Support within project and customer proximity

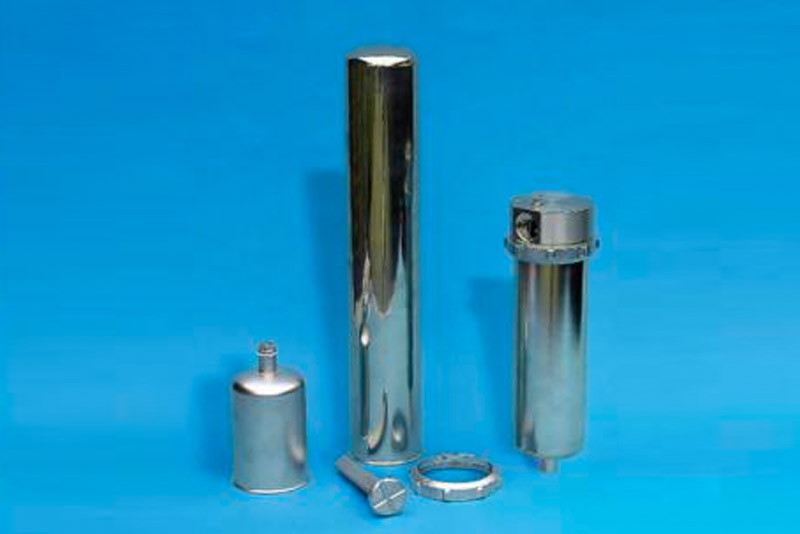

Stainless steel cartridge filter housing for liquid filtration
Contec stainless steel cartridge filter housings are compact and highly resistant solutions for reliable filtration in industrial applications. Thanks to their good pressure and temperature resistance, Contec stainless steel filter housings are used in many different, mostly demanding applications. Manufactured from corrosion resistant stainless steel, such as 1.4301 (V2A) or 1.4404 / 1.4571 (V4A) for filter lengths from 10″ to 40″, they are suitable for chemical to sensitive food applications as well as process filters.
Applications
- Water treatment
- Chemical and pharmaceutical industry
- Pre-filter for reverse osmosis systems
- Beverage and food industry
- Particle filters in electroplating
- Surface technology
- Petrochemicals
- Oils
- Paints and lacquers
- Solvents
- Post-filter after ion exchangers and activated carbon filters
Features
- Pre- and fine filtration
- Manufactured in accordance with PED 2014/68/EU Art. 4, par. 3
- Easy maintenance
- High resistance
- Easy to clean
- Filter housing can be completely emptied
Advantages
- Depending on the housing type and size, filter elements with DOE, Code 3 and Code 7 adapters can be used
- High corrosion resistance
- Durable and robust
- Suitable for high temperatures up to 80 C° (higher temperatures on request)
- Pressure resistance up to 16 bar (higher pressure on request)
- Easy-access locking technology
- Easy handling when installing and removing the filter cartridges
Medium
- Alkaline solutions
- Acids
- Oils
- Lacquers
- Food
- Water
- And much more
Options
- Special sizes and materials on request
- Various sealing materials available (e.g. Perbunan, FPM, PTFE, EPDM etc.)
- Different fitting configurations possible
Flow rate
- Depending on application specification (online inquiry)
