Contec Sterile filter housings made of stainless 1.4404 for highest purity requirements
Maximum purity and high operational safety

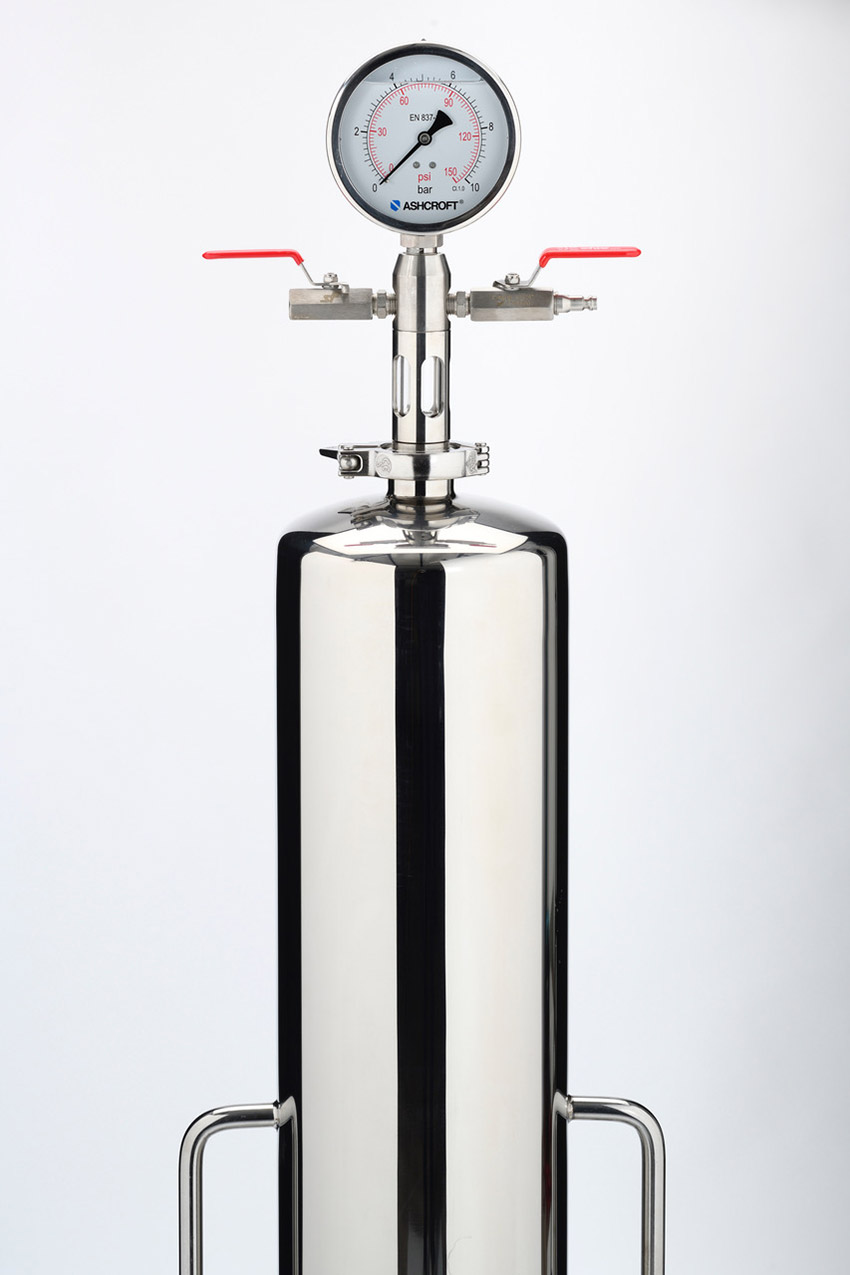

Stainless steel filter housing for microfiltration
The Contec stainless steel filter housings for microfiltration and terminal filtration are specially designed to meet the needs and purity requirements of the pharmaceutical, cosmetics, beverage and electronics industries. The housings have a highly polished surface and have no "dead" corners or edges. They are easy to clean and can be steam sterilized or chemically cleaned with filter elements. Germs, bacteria and other microorganisms are prevented from setting on the filter. Suitable for CIP / SIP.
To meet the need of many different applications, the housings are available in numerous variants (single and multiple housings) and can be equipped with up to 48 membrane elements in sizes from 5" to 40”.
Certified according to PED 2014/68/EU, ATEX 2014/34/EU, EC 1935/2004
Applications
- Microfiltration
- Beverage industry
- Wine bottling
- Chemical and pharmaceutical industry
- Electroplating
- Surface technology
- Petrochemicals
Medium
- Alkaline solutions
- Acids
- Oils
- Lacquers
- Food
- Ultrapure water
- Beverages
- And much more
Flow rate
- Depending on application specification
Advantages
- Dead space-free housing for reliable cleaning
- Can be steam sterilized or chemically cleaned (CIP / SIP)
Options
- Custom sizes possible
- Standard tri clamp connections
- Round thread DIN11851 or weld-on socket
- Drain valves
- Various sealing materials available (e.g. FPM, PTFE, EPDM etc.)
- Different fitting configurations possible
